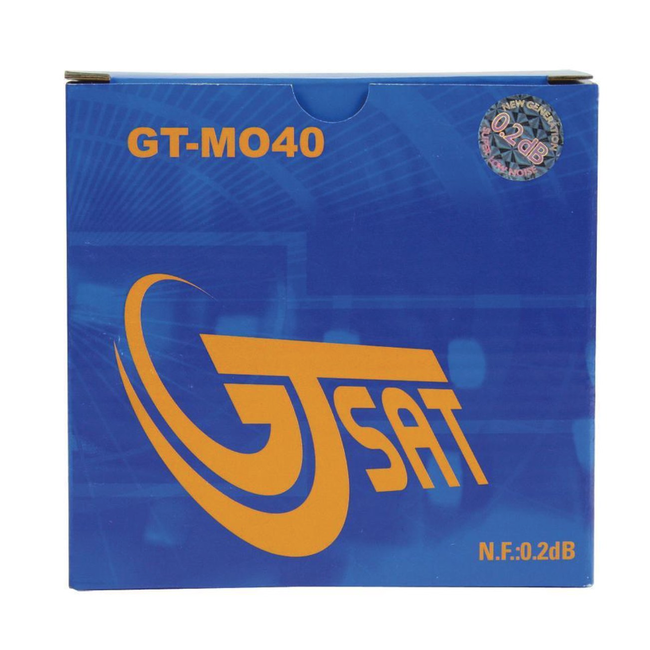

GT-DUO MONO SINGLE A/H

Deze Monoblock Single Output LNB is speciaal ontworpen voor de dual ontvangst van twee satellieten. Dit model is ontwikkelt voor 80cm schotels en kan enkel op 1 ontvanger aangesloten worden.

• Input frequency range:

-Low band: 10.7 – 11.7 GHz;

-High band: 11.7 – 12.75 GHz

• Output frequency range:

- Low band: 950 – 1950 MHz;

- High band: 1100 – 2150 MHz

• Local oscillator frequency:

- Low band: 9.75 GHz;

- High band: 10.60 GHz

• Local oscillator frequency stability:±1 MHz (max)@ room temperature
• Local oscillator frequency phase noise:-60 dB c/Hz @ 1 kHz (max.); -85 dB c/Hz @ 10 kHz (max.); -105 dB c/Hz @ 100 kHz (max.)
• Noise figure:0.2 dB (Typ.)
• Conversion gain:57 – 61 dB
• Gain flatness 26 MHz bandwidth:±0.5 dB (Typ.)
• Polarity switching voltage:

- Vertical: 11.0 – 14.0 V (DC)

- Horizontal: 16.0 – 20.0 V (DC)

• Band switching:

- Low band : 0 kHz:

- High band : 22 kHz (±4 kHz)

• Cross polarisation isolation: 25 dB (Typ.)
• Image rejection:40 dB (Min.)
• Current consumption:140/210 mA (Typ.)
• Output connector type:75 Ohm F-Female
• Output spurious:<-60 dBm
• Operating temperature:-40°C ~ +65°C
